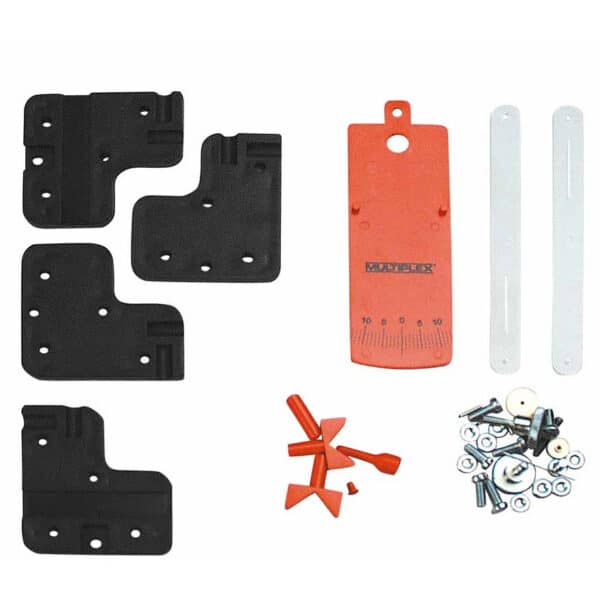

Multiplex EWD Incidence Gauge

Description

In addition to the center of gravity, the EWD (setting angle difference) must also be correct if the model is to fly well. Inaccurate settings quickly lead to countless test flights or an immediate crash. With the Mutliplex EWD Incidence Gauge, this uncertainty can be avoided on the first flight. EWD measurement with prism or measuring mandrel on:

• strongly curved profiles (no measurement error due to measuring mandrel)
• T-tail, cross tail
• V-tail (through swiveling prisms) The

With the Multiplex EWD Incidence Guage, the following useful measurements are also possible:

• Rotor blade setting on helicopters
• Engine camber measurement on combustion and E-drives
• Check of twisting or warping of wings
• Positioning of the model at take-off (position of the wheels)
