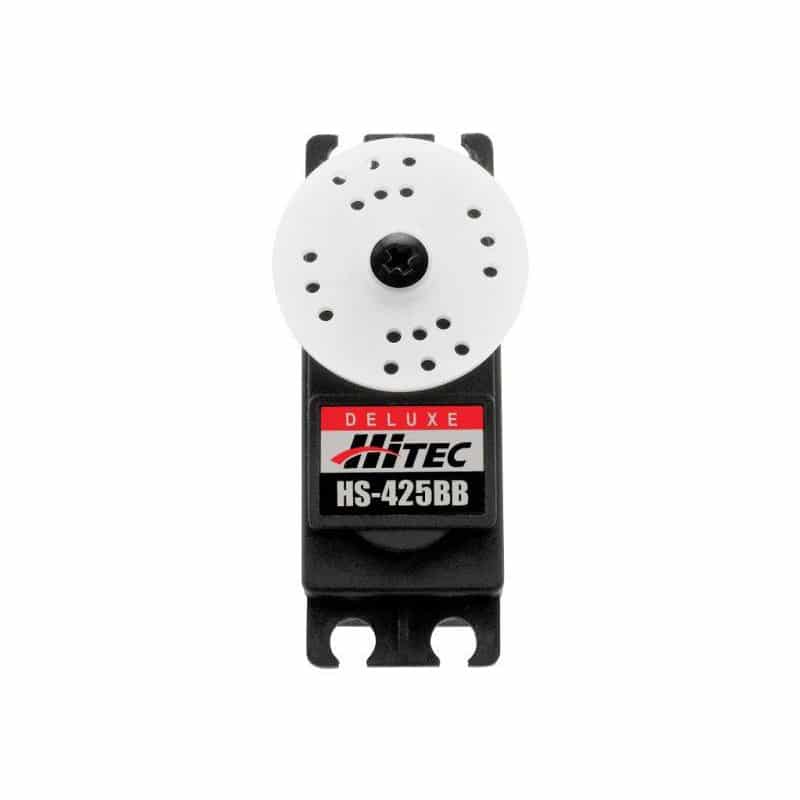

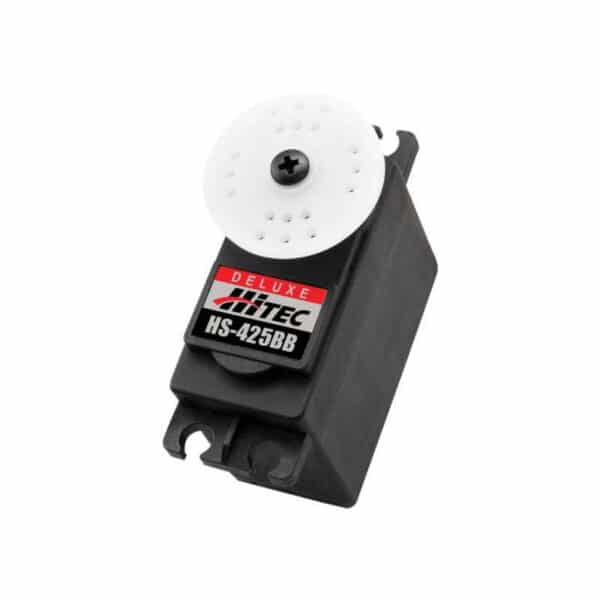

Hitec HS-425BB Deluxe Ball Bearing Standard Servo

Description

The HS-425BB is offered with dual ball bearings, impact resin gears, and high-performance circuitry. As one of Hitec's longest-running production servos, it has proven to be a durable and dependable product year after year.

HS-425BB Servo Features

• Durable and Dependable Construction
• Durable Resin Gear Train
• Dual Ball Bearings
• High-Performance Circuitry

HS-425BB Servo Accessories

• Nylon Gear Set
• Plastic Case Set
• Applicable Horns

HS-425BB Servo Specifications

• Performance Specifications
  • Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
  • Speed (Second @ 60°) 0.21 ~ 0.16
  • Maximum Torque Range oz. / in. 46 ~ 57
  • Maximum Torque Range kg. / cm. 3.3 ~ 4.1
  • Current Draw at Idle 8 mA
  • No Load Operating Current Draw 150 mA
  • Stall Current Draw 800 mA
  • Dead Band Width 8 µs
• Physical Specifications

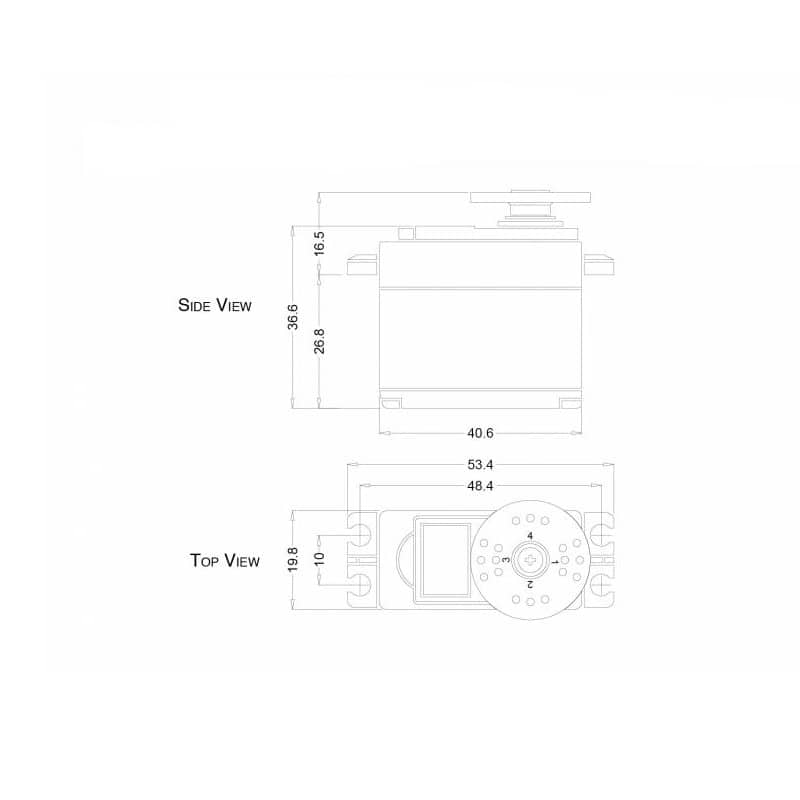

  • Dimensions (Inches) 1.59 x 0.77 x 1.44
  • Dimensions (Metric) 40.6 x 19.8 x 36.6
  • Weight (Ounces) 1.60
  • Weight (Gram) 45.5
  • Circuit Type HT7003 Analog SMT
  • Motor Type 3 Pole Metal Brush Ferrite
  • Gear Material Nylon
  • Bearing Type Dual Ball Bearing
  • Output Shaft (type / Ømm) Standard 24
  • Case Material Plastic
  • Dust / Water Resistance N / A
  • Connector Gauge (AWG) / Strand Count 25 / 40
• Radio Control Applications
  • Sport Plane 50 - 64 oz.
  • Sailplane 2 meters and up
  • Scale 50 - 64 oz.
  • Sail Boat < 1 meter
  • Power Boat 1/10th
