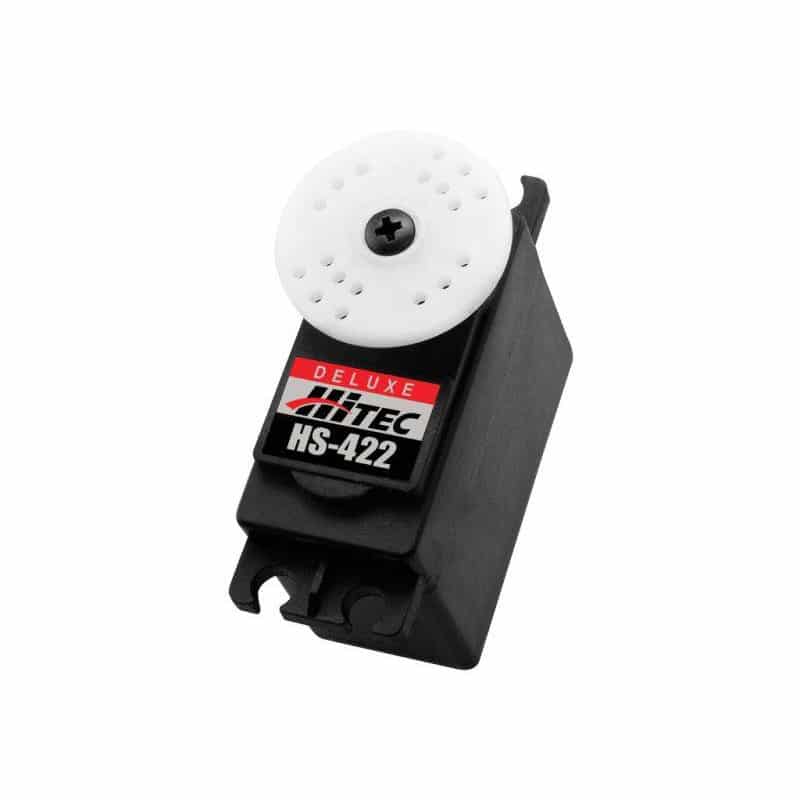

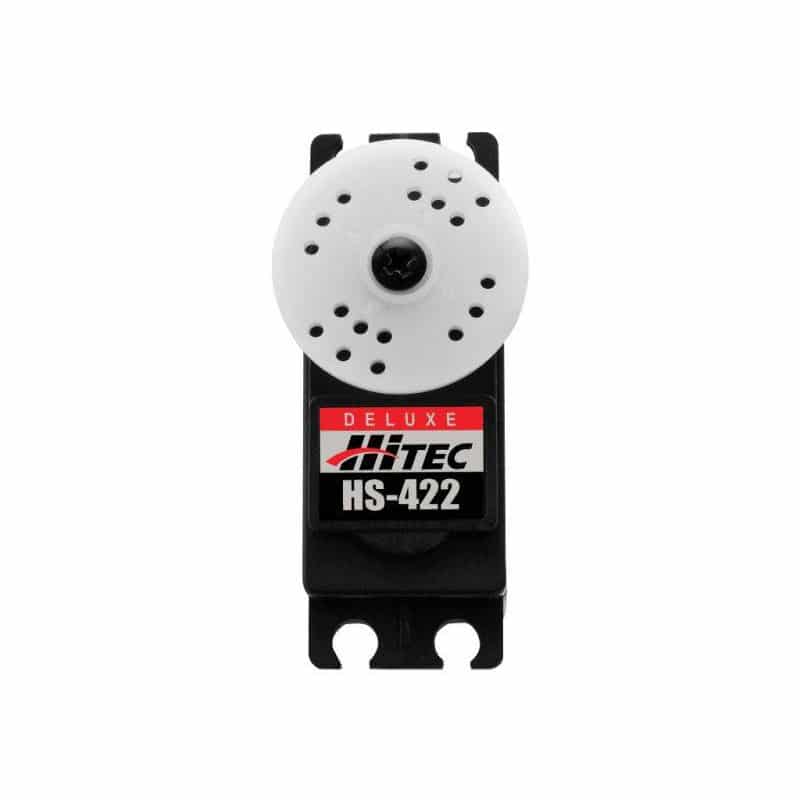

Hitec HS-422 Deluxe Standard Servo

Description

The HS-422 is one of the most durable and reliable servos Hitec has ever offered. With its dual iron-oilite bushings, high impact resin gear train, and high-performance circuitry, the HS-422 features excellent centering and resolution.

HS-422 Servo Features

• Durable and Dependable Construction
• Durable Resin Gear Train
• Oilite Bushing Supported Output Shaft
• High Performance Circuitry

HS-422 Servo Accessories

• Nylon Gear Set
• Plastic Case Set
• Applicable Horns

HS-422 Servo Specifications

• Performance Specifications
  • Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
  • Speed (Second @ 60°) 0.21 ~ 0.16
  • Maximum Torque Range oz. / in. 46 ~ 57
  • Maximum Torque Range kg. / cm. 3.3 ~ 4.1
  • Current Draw at Idle 8 mA
  • No Load Operating Current Draw 150 mA
  • Stall Current Draw 800 mA
  • Dead Band Width 8 µs

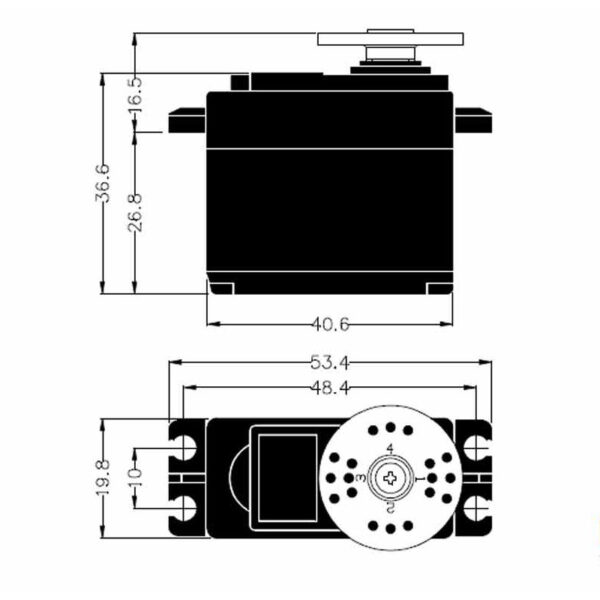

• Physical Specifications
  • Dimensions (Inches) 1.59 x 0.77 x 1.44
  • Dimensions (Metric) 40.6 x 19.8 x 36.6
  • Weight (Ounces) 1.60
  • Weight (Gram) 45.5
  • Circuit Type HT7003 Analog SMT
  • Motor Type 3 Pole Metal Brush Ferrite
  • Gear Material Nylon
  • Bearing Type Dual Oilite
  • Output Shaft (type / Ømm) Standard 24
  • Case Material Plastic
  • Dust / Water Resistance N / A
  • Connector Gauge (AWG) / Strand Count 25 / 40
• Radio Control Applications
  • Sport Plane 50 - 64 oz.
  • Scale 50 - 64 oz.
  • Sail Boat < 1 meter
  • Power Boat 1/10th
