VSpeak HUD Telemetry System

Description

VSpeak HUD Glasses are the best new thing in RC!

Experience the next evolution in remote control with the VSpeak HUD Telemetry System, also known as VSpeak Glasses. This groundbreaking technology seamlessly connects your model's telemetry data directly to your field of vision, utilizing advanced ActiveLook technology. No more looking down at your transmitter screen—keep your eyes on your model while crucial data like speed, battery life, and more are displayed right in front of you. With effortless Bluetooth (BLE) connectivity, VSpeak Glasses work with a range of RC radio systems, including Powerbox, Jeti Duplex, and Graupner HoTT, ensuring a versatile and immersive flying experience.

Tailored for various radio systems, VSpeak Glasses adapt to your needs. Whether you're using Powerbox Radio systems to monitor telemetry data and timers or Jeti Duplex Radios to access multiple pages of sensor data, the module provides an unparalleled level of customization. Setup is a breeze with the intuitive web access point for Powerbox and Graupner systems or the convenient LUA app for Jeti users. VSpeak Glasses”is the link between model remote control and AR or HUD glasses. The telemetry data transmitted from the model to the remote control transmitter is displayed in the field of view of the pilot's sunglass goggles. “VSpeak Glasses” supports all glasses based on ActiveLook technology. The data transfer from the “VSpeak Glasses” module to the glasses takes place via Bluetooth (BLE).

VSpeak Glasses for Powerbox Radio systems

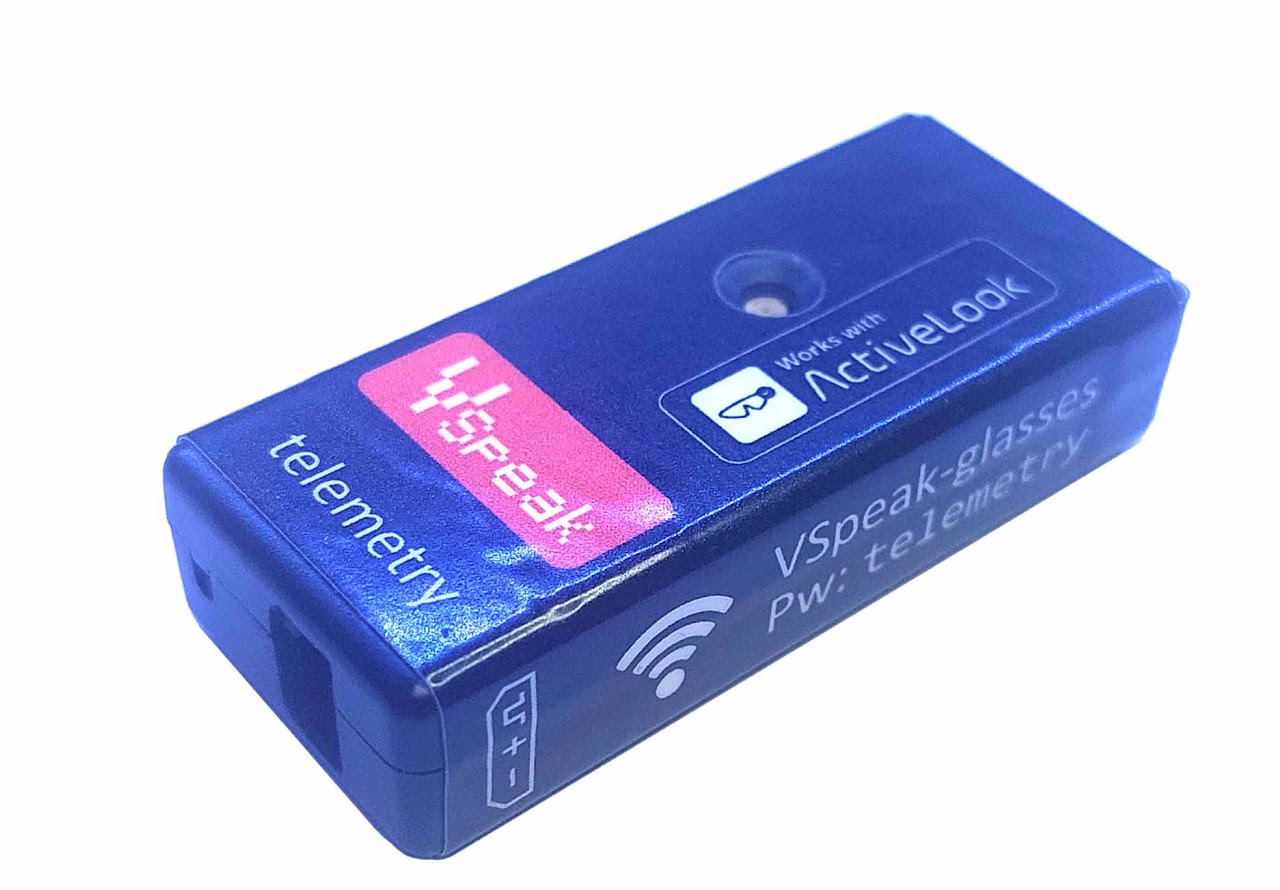

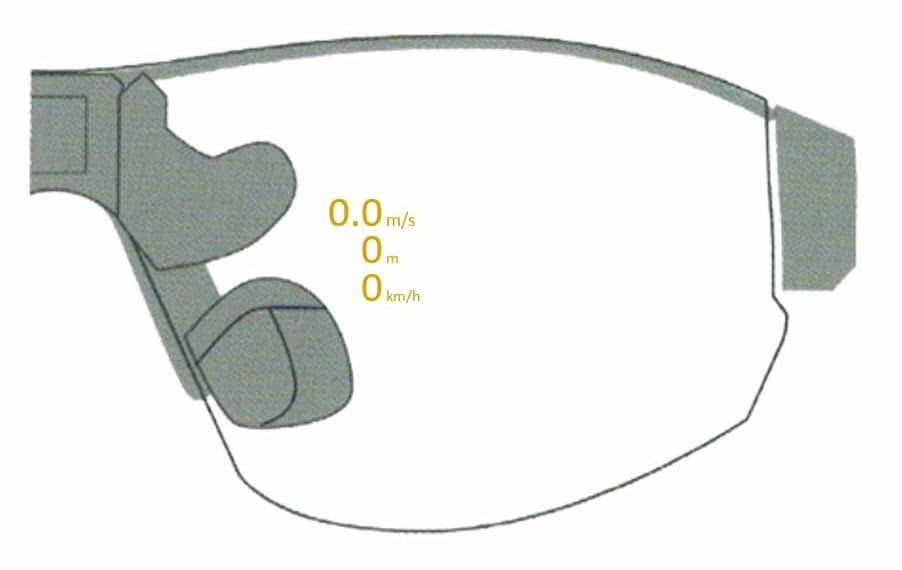

With the “VSpeak Glasses” module, all telemetry data from the Powerbox P²Bus can be displayed on AR glasses - except GPS coordinates. A maximum of 3 values can be displayed. Furthermore, 1 servo channel and 1 timer/stopwatch can be displayed. The values to be displayed are freely configurable. To set the “VSpeak-glasses” module, the module sets up a web access point so that the setting can be done equally with any internet-enabled device (mobile phone, tablet, notebook, etc...)

VSpeak Glasses for Jeti Duplex Radios

With the “VSpeak-glasses” module, all telemetry sensor data can be displayed on AR glasses - except GPS coordinates. 3 values can be displayed on up to 3 pages . The values to be displayed are freely configurable.

• The data exchange between the transmitter and “VSpeak-glasses” takes place using the LUA app “VS_glass.lc”.
• All settings are made using the LUA app “VS_glass.lc”, and these are saved based on model memory.
• When the glasses is switched on, changes made in the LUA app “VS_glass.lc” are immediately visible.

The “VSpeak-glasses” module is suitable for installation in all Jeti transmitters with color display.

VSpeak Glasses for Graupner HoTT Radios

With the “VSpeak-glasses” module, almost all telemetry data from the HoTT telemetry modules can be displayed on AR glasses. For each HoTT telemetry module, the telemetry values can be displayed on a maximum of 4 pages. The pages are “scrolled” using the gesture sensor of the ActiveLook glasses. The values to be displayed are freely configurable. To set the “VSpeak-glasses” module, the module sets up a web access point so that the setting can be done equally with any internet-enabled device (mobile phone, tablet, notebook, etc...)

Frequently Asked Questions

What if I wear corrective glasses?

If you are farsighted, i.e. you only need “reading glasses”, you do not need any optical correction, as you can clearly see the model in the distance - and at the same time you can also clearly see the telemetry data displayed in the ENGO glasses.

In the case of nearsightedness, optical correction of visual acuity is always required to see at distances. The manufacturer of the glasses does not currently offer a solution for corrections. At this time is not yet clear whether and when a manufacturer solution will come.

However, you don't have to forego the advantages of ENGO glasses:

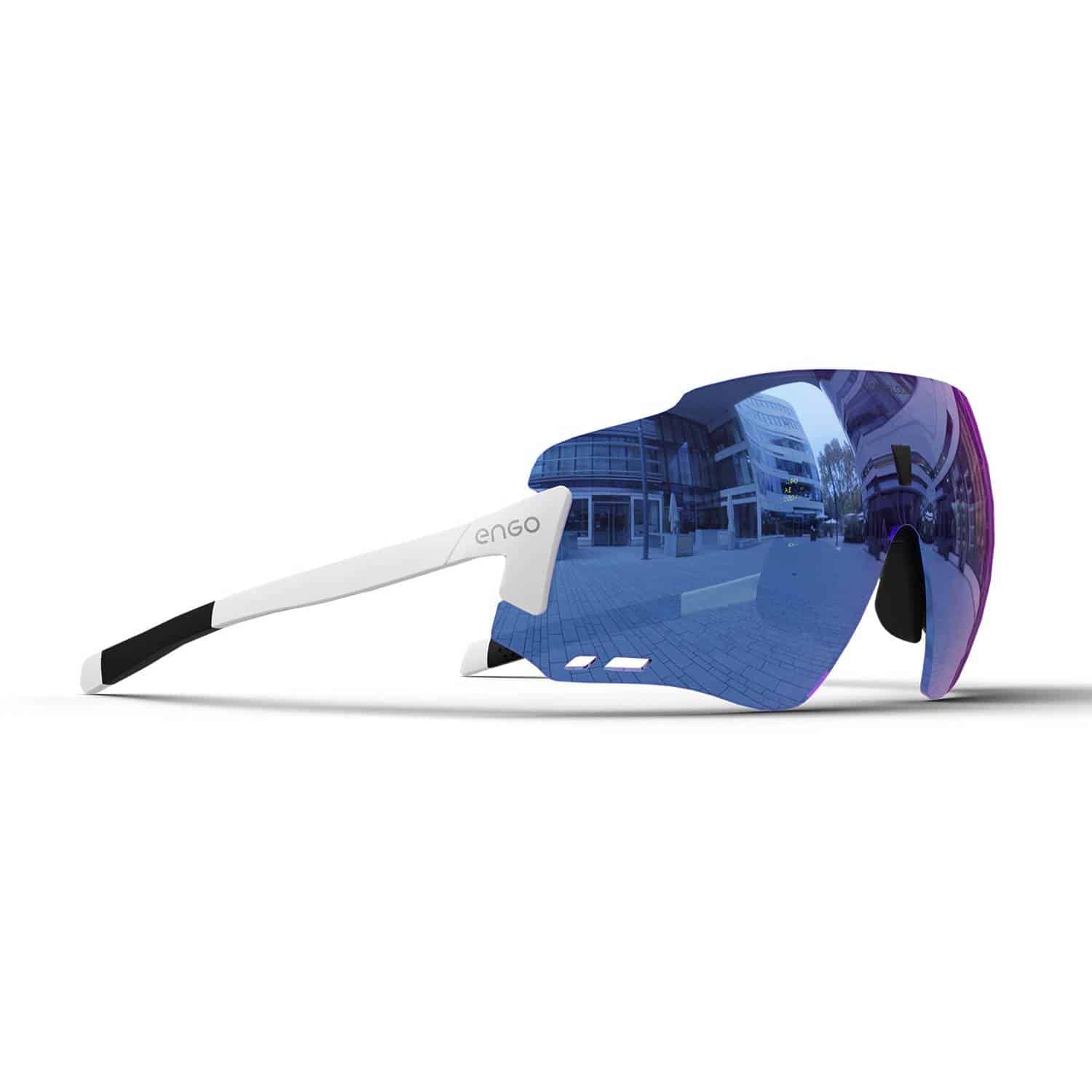

Contact lens wearers can use both the ENGO1 and ENGO2 as normal.

For people who wear glasses, we recommend the ENGO2 as “over-glasses” over normal everyday glasses. The prerequisite is that normal glasses have a small width. Enrico Thäter from the ElsterJet-Team uses his glasses in this way, and this was also reported in the JetPower2024/2 magazine in the article about our glasses. These additional glasses disappear completely under the ENGO2 so that you can rely on the cheapest glasses models.

What is ActiveLook technology?

ActiveLook is a heads-up, hands-free, near-eye display technology for eyewear that provides just the information you need or want, in real time, right in your field of view. Focus on what matters, with no distractions. ActiveLook technology has been utilized in many applications but is mainly focused on exercise and sports related application. VSpeak Glasses are the first implementation of this technology for radio control enthusiasts.
